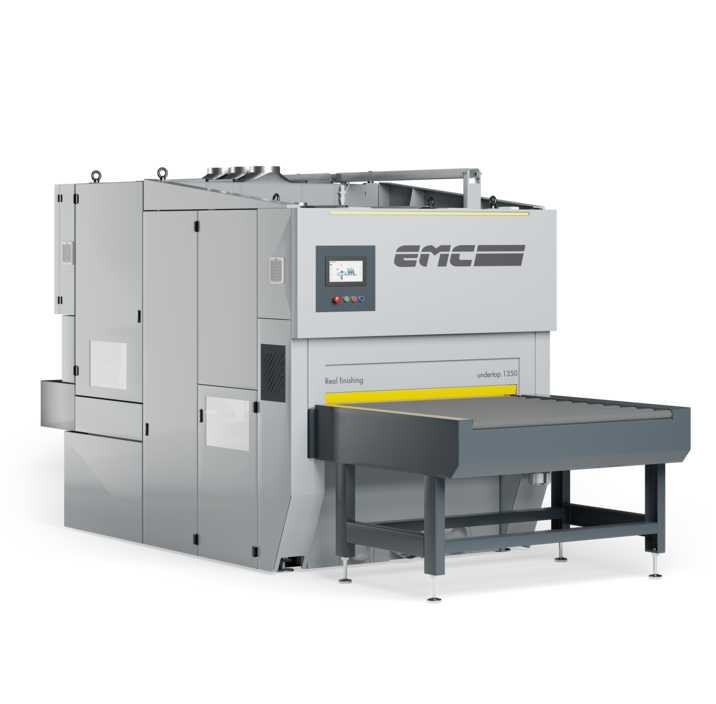

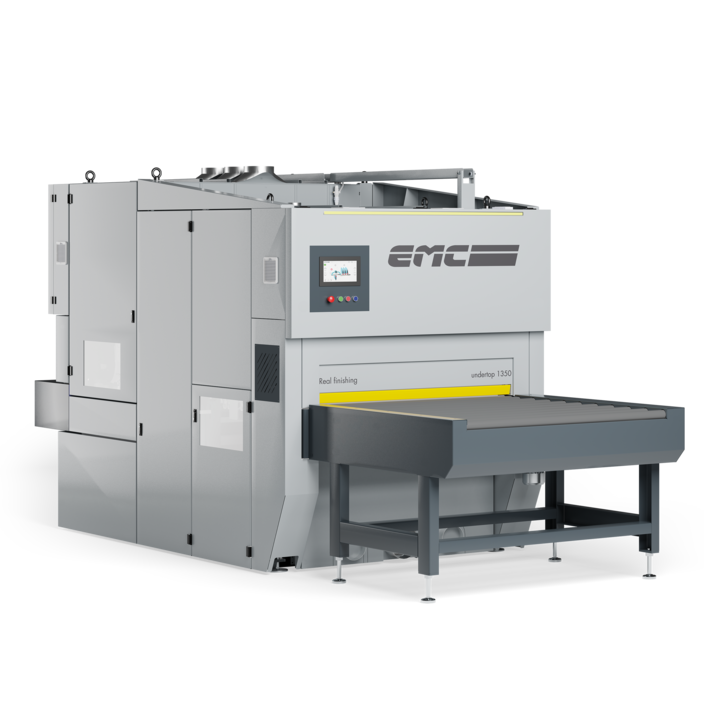

Under Top 1350
AUTOMATIC CALIBRATION AND SANDING LINE ON BOTH SIDES OF THE PANEL
UNDERTOP machine is designed to automate every kind of dual-side calibrating and sanding process, delivering exceptional flexibility, precision, and performance. With a modular configuration of two or three processing units, including optional rotating brush tools, The UNDERTOP is ideal for a wide range of surface treatment applications.
Parts are automatically fed through the machine via a precision-controlled conveyor belt, where both sides are simultaneously calibrated and sanded. Once processed, the parts exit the machine ready for collection—no manual handling required during operation.
BASIC MACHINE:
Variable feed speed via inverter: 3-19 m/min
Fixed height 980mm
Standard Touch screen 10"
Independent engines up to 40hp
Pneumatic pressure bars on the lower machine
Internal Vacuum 5,5hp on the lower machine
Version with 2/3/4 abrasive belts
Synchronization of speed
2 or 3 + 2 or 2 Configurable Units
Customize the setup to meet specific calibrating and sanding requirements.
Dual-Side Processing
Simultaneous treatment of both surfaces for maximum efficiency.
Brush Tool Integration
Enables advanced surface structuring and finishing.
Fully Automated Conveyor System
Ensures smooth, continuous, and efficient processing.
Compact, efficient, and functional construction
User-friendly interface
Manual intervention is only needed at the output stage.
Aggregates
