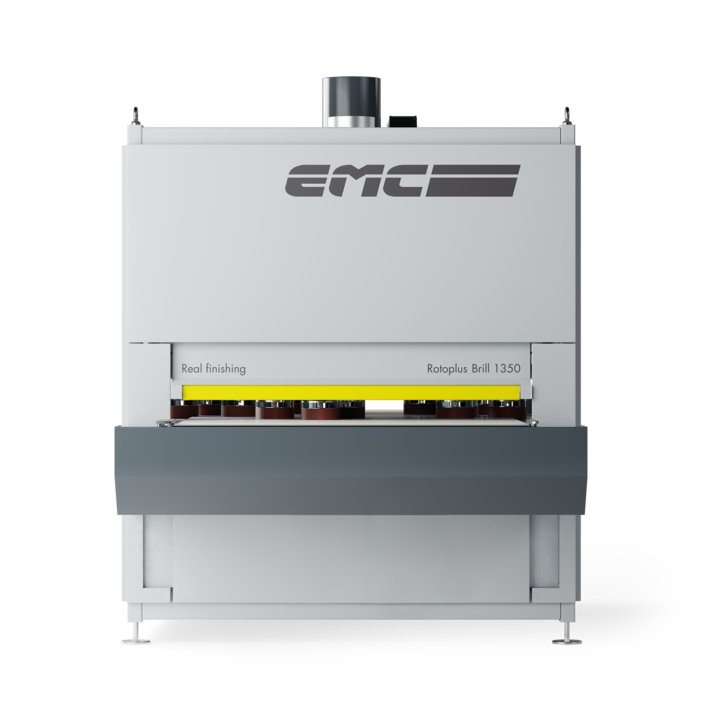

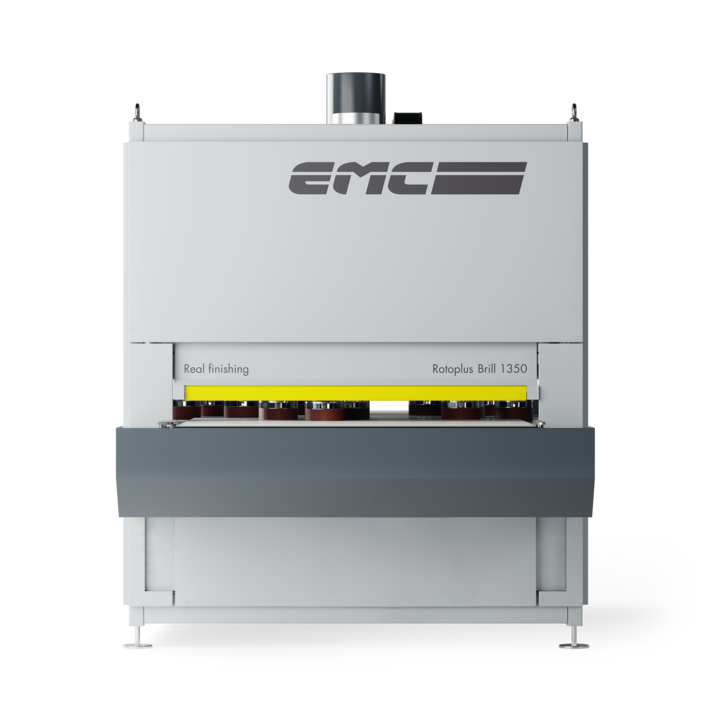

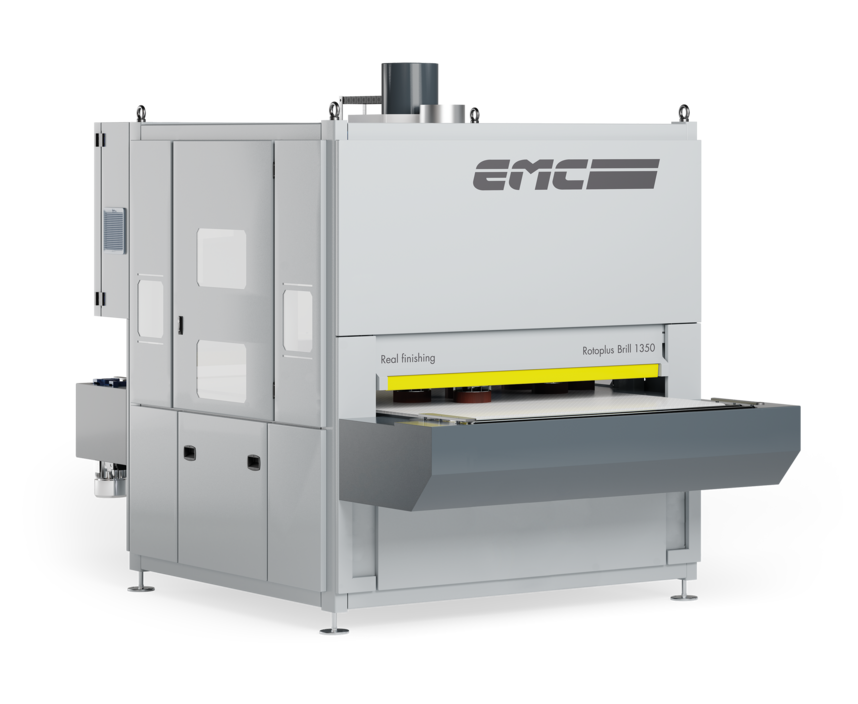

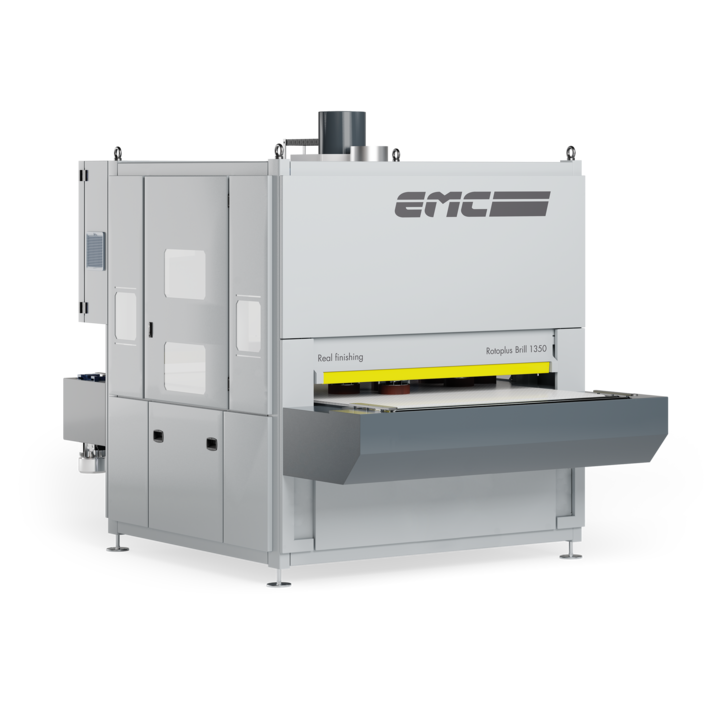

Rotoplus Brill 1350
HEAVY DUTY POLISHING MACHINE WITH 'THROUGH' TECHNOLOGY FOR GLOSSY PAINTED PANELS
The ROTOPLUS BRILL is a state-of-the-art, fully optimised automatic buffing solution designed for high-volume, high-quality flat panel finishing. Compact yet powerful, it offers a cost-effective and intelligent approach to automating the buffing process, while ensuring exceptional surface quality and operator-friendly functionality.
Ideal for medium to large-scale production environments, ROTOPLUS BRILL delivers uniform gloss enhancement across a wide range of materials, making it the perfect solution for furniture, cabinetry, and decorative panel manufacturers seeking premium results with maximum efficiency.
BASIC MACHINE:
Fixed height: 900mm
Variable feed speed via inverter: 0,4-6 m/min
Carousel with 15 disc pads
Independent motors for system – 2,2 kW
Motorized height adjustment for brushes
Buffing pads diameter Min-Max: mm 150 – 200
Carousel variable speed adjustable from 3 to 36 RPM by means of electronic inverter
Clockwise and anticlockwise rotation direction
Standard Touch screen: 10" wide
Internal vacuum system: up to 7,5 kW x 2 (15hp)
Control panel and "Touch screen" viewer
Advanced Automatic Polishing System
Designed for flat panels with consistent, high-pressure surface contact.
Heavy duty performing buffing carousell
Heavy duty polishing unit
Space-saving design with industrial-grade performance.
Consistent High-Gloss Finish
Delivers flawless surface results with minimal manual effort.
Operator-Friendly Interface
Easy to use, with intuitive controls and minimal training required.
Universal Application
Suitable for lacquered surfaces and composite panels.
High-Volume Ready
Built for continuous operation in demanding production environments.
