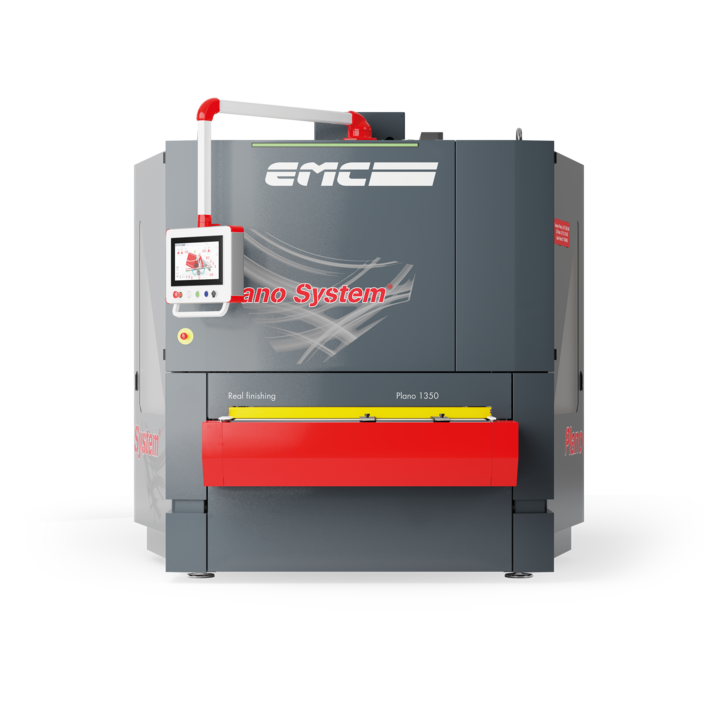

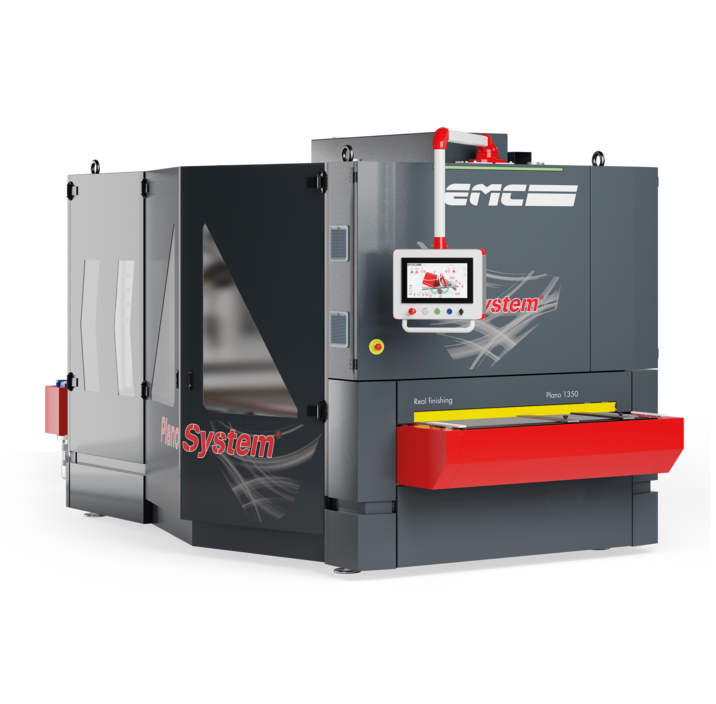

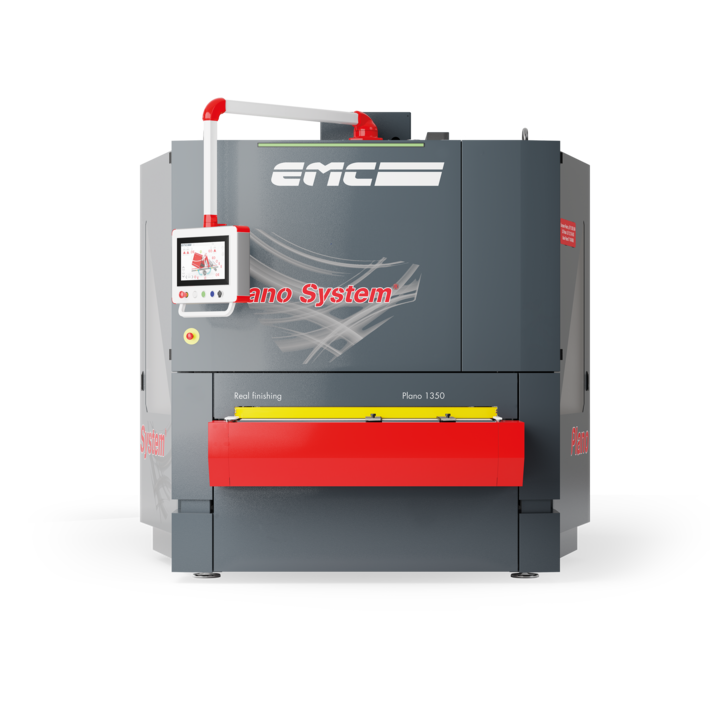

Plano 1350

MULTIPURPOSE SUPER-FINISHING SANDER

The PLANO 1350 is the state of the art , enhanced sanding machine in its class—engineered for durability, power, and continuous operation, even in multi-shift industrial environments. Built to handle the most demanding workloads, it delivers exceptional reliability and consistent surface quality over time.

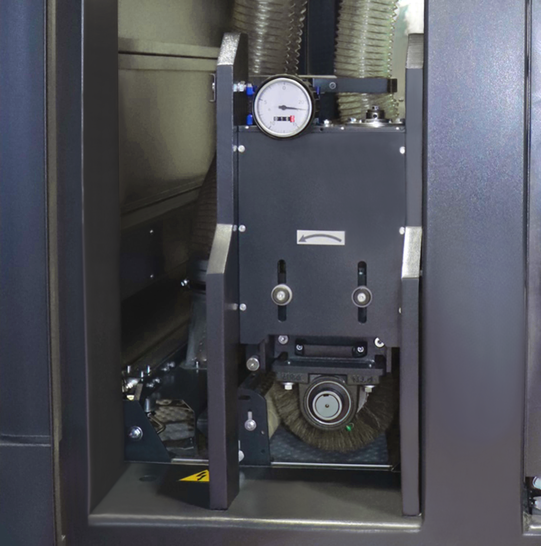

As a leader in innovative sanding technology, the PLANO 1350 features a constant pass line and a modular configuration of up to 3 core processing units, including a patented cross-belt system and optional rotating brush tools. This makes it unmatched in flexibility, performance, and innovation—a machine truly incomparable within its category.

Parts are automatically fed through the machine via a precision conveyor belt, where they undergo high-quality sanding and finishing. Once processed, the parts exit the machine ready for collection—no manual handling required during operation.

BASIC MACHINE:
Variable feed speed via inverter: 3-24 m/min
Fixed height 900mm

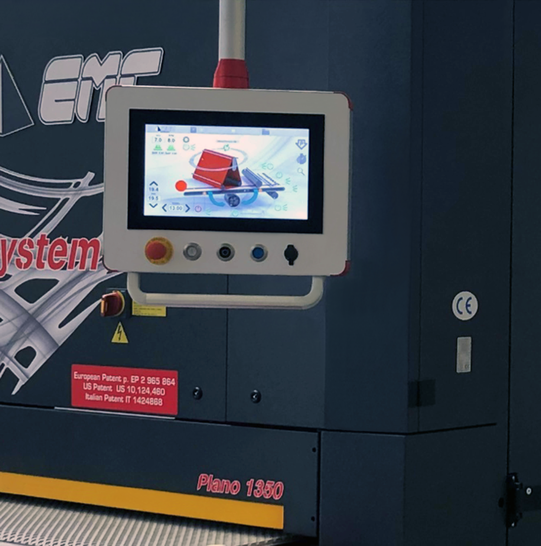

Control via industrial PC and "Touch Screen" panel
Version with 2/3/4 abrasive belts
Standard Touch screen 15,4"
Vacuum System up to 11kW with synchronised sections
Superfinisher rotary abrasive belt unit with double electronic PADS
Servo-controlled rotation with the possibility of stopping in any angular position
Variable speed programmable and adjustable from 0.1 to 40 RPM (rev/min)
Hyper Finisher, development of abrasive tape mm 4.960
Nr. 2 electronic shoes sectioned and synchronized (pitch) 18 mm
