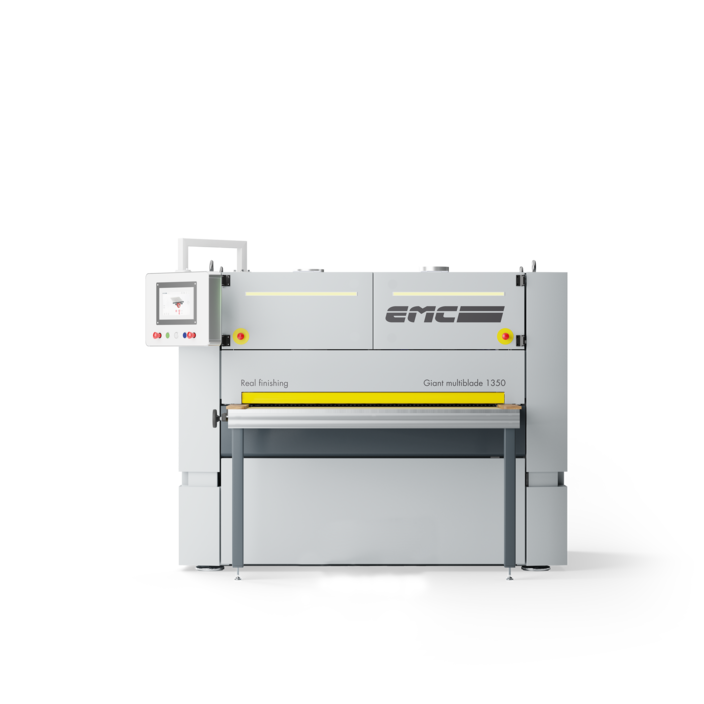

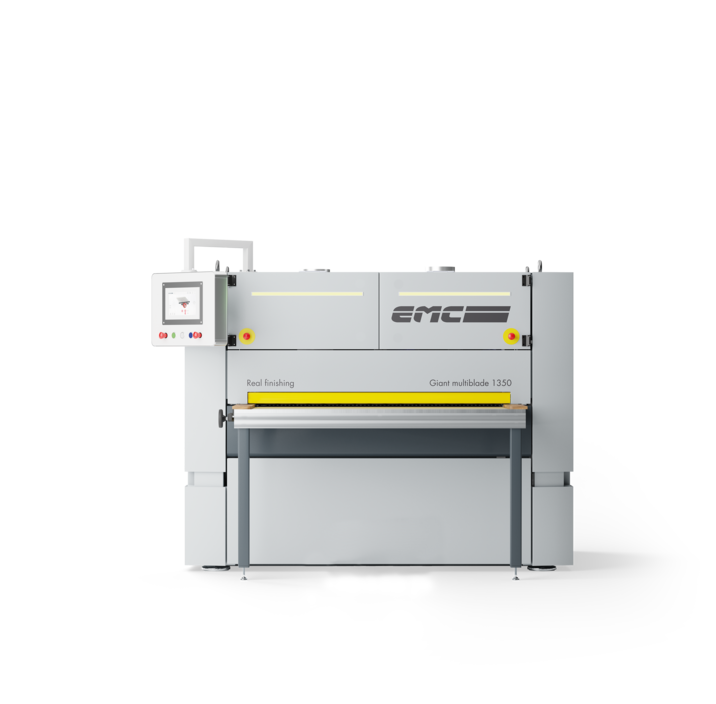

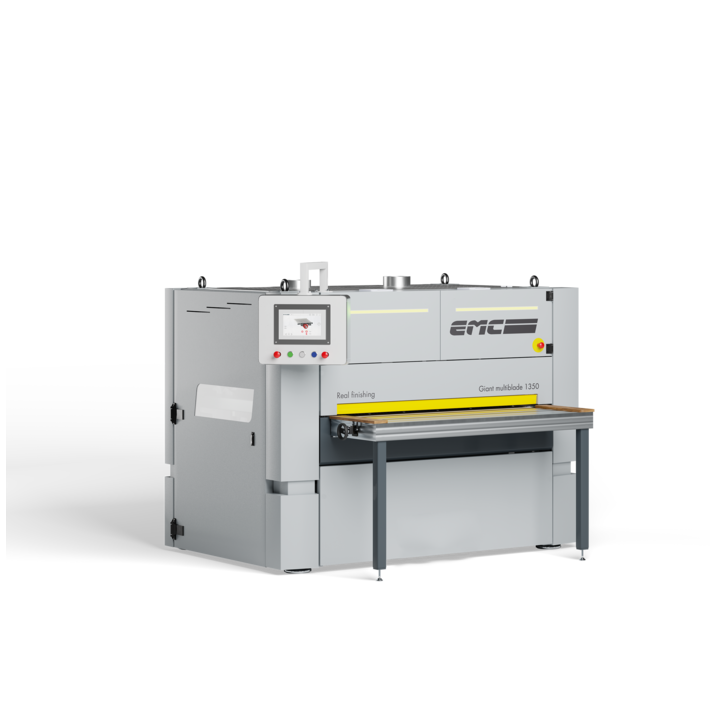

Giant Multiblade 1350
HEAVY-DUTY multiblade saw
The GIANT MULTIBLADE is a robust, high-performance industrial machine engineered for durability, precision, and continuous operation, even in multi-shift environments. Designed to handle the most demanding workloads, it delivers reliable performance and consistent results over time.
As a top-tier heavy-duty solution for cutting and grooving processes, the GIANT MULTIBLADE features a constant pass line and a modular configuration of up to multiple processing units. It can be equipped with multi-blade cutting heads, grooving tools, making it ideal for high-speed, high-precision panel processing.
Parts are automatically fed through the machine via a precision-controlled conveyor belt, where they undergo cutting, grooving, and optional surface finishing. Once processed, the parts exit the machine ready for collection—no manual handling required during operation.
BASIC MACHINE:
Variable feed speed via inverter: 3-24 m/min
Fixed height 900mm
Min length of the parts held by the pressure rollers: mm 600
Motorized feed roller
Diameter of saw blade, max: 325
Main shaft Ø90
Fast exchangeable tools
Standard Touch screen 15,4"
Version with 1/2/3 groups
Anti-kickback protection made of 58 independent elements (safety hammers)
Rotating cutting speed 3.200 RPM

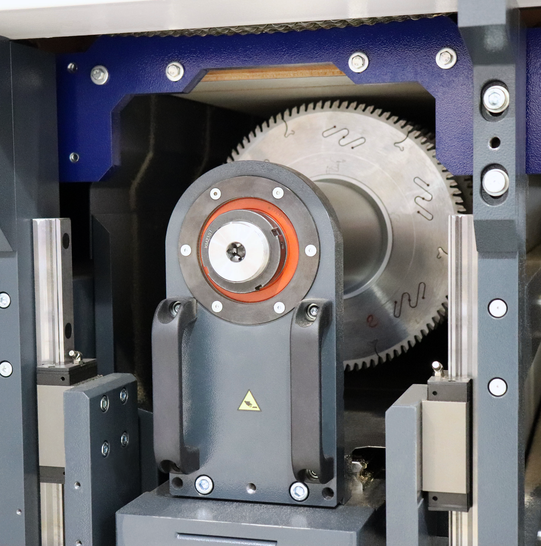

Multi-Blade & Grooving Integration
Ideal for high-speed, high-precision panel processing.

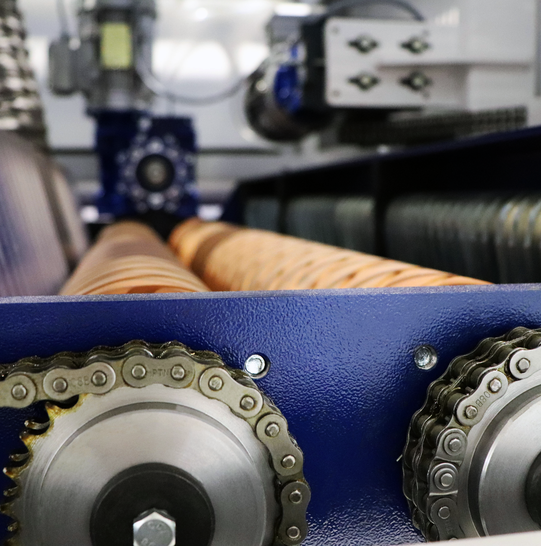

Fully Automated Conveyor System
Ensures continuous, efficient, and hands-free operation.
Heavy-Duty Construction
Built for long-lasting performance in demanding industrial settings.

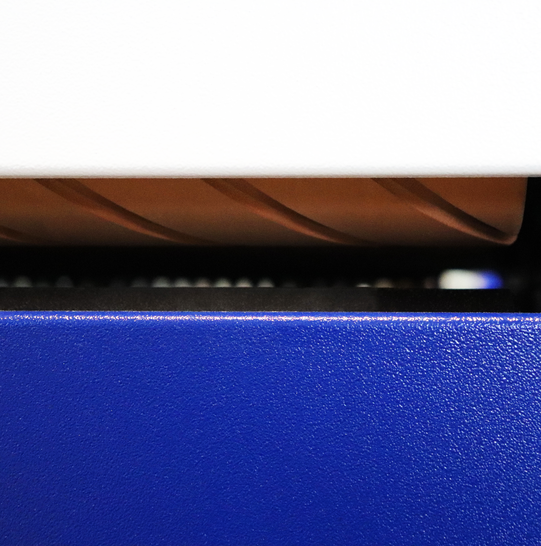

Multi-Shift Ready
Designed for 24/7 operation with consistent output.

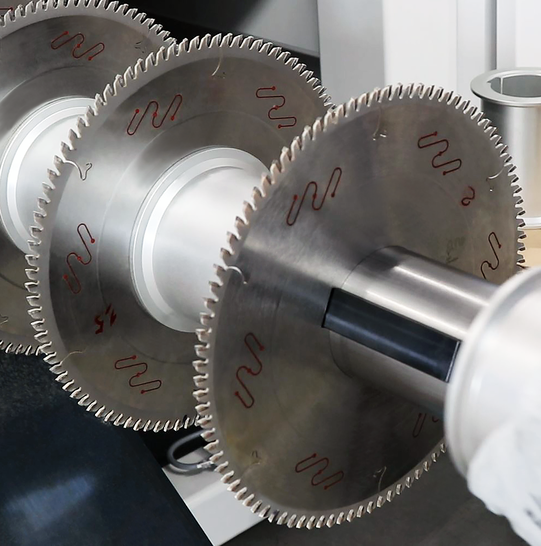

Universal Application
Suitable for wood, MDF, plywood, and composite materials.
Versatile Integration
Easily fits into various production lines and processing workflows.
Operator Efficiency
Manual intervention is only needed at the output stage.
